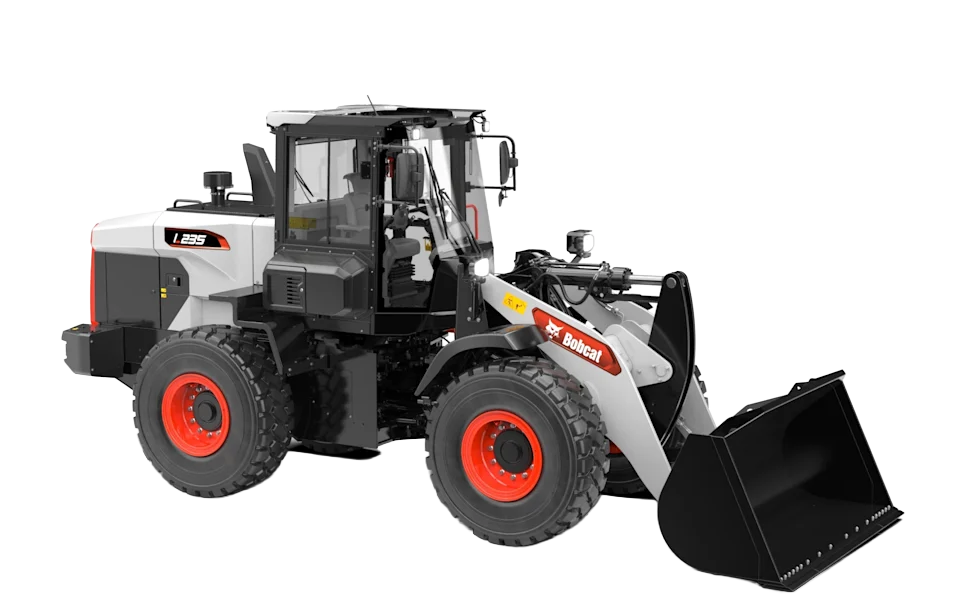

Bobcat L235 Large Wheel Loader

With its large bucket capacity, each cycle takes a major bite from massive tasks. Large, durable axles optimize lift capacity to move more material in less time.

Customize your performance with three powerful transmission modes*.

• Manual provides precise speed control.
• Auto 1-4 automatically shifts up and down depending on the task. As you demand more speed, it shifts up; when you need more power and torque, it shifts down.
• Auto 2-4 with manual kickdown shifts automatically in gear 2 through gear 4, with a manual downshift into first gear. This provides great performance and flexibility for lighter-duty work.

*Not available on the L205

Power, normal and economy modes give you more ability to customize the Bobcat loader’s performance to match the job – whether your priority is power or fuel economy.

• Power mode gives you the highest performance to quickly load and carry material, with fast travel from point to point.
• Normal mode covers a wide variety of everyday work conditions while enhancing your fuel efficiency.
• Economy mode keeps fuel consumption to a minimum while reducing engine sound levels – so you can complete light-duty tasks in maximum comfort.

With planetary drives to transfer torque to the wheels, Bobcat wheel loaders provides high travel speeds and impressive torque. High travel speeds mean less need for trailering when moving between jobsites.

A variable geometric turbocharger generates more torque and a quicker response at low rpm, giving you a precise, satisfying response when you push the accelerator.

L205: 23.6 mph
L235: 24.2 mph
L255: 23.3 mph
L285: 22.1 mph

The automatic powershift torque converter transmission makes operation easy, maximizes productivity and saves fuel during demanding load-and-carry work (not available on the L205).

Enhance operation with feedback that helps to improve productivity. The wheel loader operation tips are generated in response to actual operator driving habits – ensuring that feedback is relevant and helpful.

Automatic ride control detects when you’re carrying material and cushions the load to reduce spillage.

The lift arm float allows the bucket to follow ground contours for fast backdragging, efficient snow removal and other tasks.

Set a maximum lift height and work easily in areas with height restrictions, such as under bridges, building entries or indoors.

This setting allows for slow and fine movements for maneuvering in tight spaces or around corners.

Bobcat large wheel loaders have an articulation joint that delivers a tight turning radius for high maneuverability in obstacle-filled jobsites.

More power. More torque. More work done. The powerful Tier 4 engine is turbo-charged for consistent performance at all elevations.

The high-pressure common-rail (HPCR) fuel delivery system and cooled exhaust gas recirculation work with aftertreatment systems to fully meet Tier 4 requirements.

Tier 4 aftertreatment technologies include diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR) with diesel exhaust fluid (DEF). The L205 also requires a diesel particulate filter (DPF).

A limited-slip differential gives torque to the wheel with the most traction, powering you through tough ground and generating unbeatable pushing power.

The Z-bar linkage design of Bobcat wheel loaders enables heavy lifting and loading, fast bucket movement, excellent breakout forces, and easy bucket angle positioning.

Standard auto-idle reduces engine rpm when the steering wheel or joystick isn’t being used – saving fuel and operating costs. When you move the controls, the loader automatically returns to its working rpm.

With the auto shutdown feature, the wheel loader will shut down after a preset interval, saving you fuel and money. You can set the shutdown timer from 3 to 60 minutes with the touch display.

Maximize lift capacity for a variety of heavy applications.

As you move the loader arms downward, the bucket automatically returns to your set digging position, maximizing cycle time efficiency for top productivity.

A standard 8-inch touchscreen display provides simple, convenient machine interaction and performance information on one screen.

Keep track of machine functions, change machine settings, access the rear view camera, adjust heating and cooling, and more.

Keep productivity high and fatigue low with the Bobcat wheel loader cab. It’s roomy and comfortable, with high visibility and low sound levels to make the day’s work more productive and enjoyable.

An intuitive control layout prioritizes easy reach of commonly used controls, enhancing every hour you spend on the job.

The joystick provides easy push-button direction changes, with buttons for forward, neutral and reverse. Operators can easily change direction without lifting their hands from the controls.

A rear view access camera from the touch display keeps you aware of your surroundings.

When pressed, this button will tell you what other buttons in the machine do and how to use them.

A fully adjustable air suspension seat provides comfort for every size operator.

Telescopic and tilt steering provides a precise comfort match to operator preferences.

To make tough jobs more enjoyable and enhance communication during the workday, Bluetooth® connectivity allows for a wide range of on-the-job entertainment – plus the ability to make and receive hands-free phone calls.

Automatic heating and air conditioning systems in the cab keeps a consistent temperature for constant comfort.

Adjustable air vents direct heated or air-conditioned air where you want it.

Grab handles and easily replaceable bolt-on steps (with slip-resistant surface) make entry and exit easy.

With wide glass panels and a full glass door, you have a wide view to the work and fewer obstructions. Large, heated mirrors provide an extended view to the side and rear.

Two forward and two reverse LED work lights provide bright illumination to enhance your work in low-light areas.

An automotive-style key fob provides secure, simple machine entry with convenient push-button start.

The quick coupler makes it easy to quickly change non-hydraulic attachments from inside the cab. Choose between JRB or ISO hydraulic couplers.

Run hydraulic attachments with standard hydraulic piping that’s routed to the base of the lift arm. You can also add hydraulic lines that go all the way to the end of the lift arm.

There’s a wide variety of high-quality Bobcat attachments available that can help you tackle a range of tasks. Use a general-purpose bucket; specialized buckets for light material, aggregate or rocks; grapple buckets; pallet forks; or other attachments.

Engines meet Tier 4 regulations without a diesel particulate filter (DPF). This reduces downtime that occurs with DPF regeneration and long-term DPF maintenance costs – so you can focus on working and less on maintenance.

*This feature is not available on the L205.

With sturdy solid-steel lift arm plates, you can leverage the wheel loader’s full capacity to strongarm the job.

The double-tapered roller bearings are large and self-centering to distribute vertical and horizontal weight in the articulation joint over a larger area.

Vented covers and dust seals stop grease overfills, reducing maintenance and increasing pin life. When maintenance is necessary, all-steel access panels make access easy.

The heavy-duty axles of Bobcat wheel loaders give you better bucket capacities, stopping power and break life in extreme working conditions.

The variable-speed cooling fan runs slower or faster depending on the cooling demands of your machine. This can save fuel and enhance the life of your cooling system.

Manage the standard reverse feature from the touch display to keep the system clean when working in dusty applications. An auto reverse setting runs the fan periodically to maintain low debris levels.

With the brakes conveniently located outside the wheel hub, the discs are exposed to lower rpms and less heat. This ensures a longer life for the discs while giving you simple access for brake maintenance.

The Bobcat wheel loader box frame offers state-of-the-art strength. Computerized structural analysis ensures key sections can be made more robust, ensuring better lift capacity and durability.

With its articulating design, you get ideal load distribution and excellent rigidity for maximum frame life.

Full-front and partial-rear fenders come standard to protect your machine from debris or material. You also have the choice to upgrade to full fenders in the rear for even more protection.

Modular design allows for easier replacement than welded-on steps.

Radiators with maximized fin spacing reduce debris buildup and clogging while enhancing cooling system performance. This can reduce your downtime in dusty, dirty environments.

The exhaust heat exchanger expels hot air from your engine compartment and keeps the engine and cooling system running at peak efficiency. The isolated design of the engine and cooling system maximizes efficiency and promotes long life for the engine components.

The rear-mounted cooling system pulls in cool, clean air for better performance and efficiency. The rear screen flips up and the fan swings out of the way to make cleanout easy.

Comes standard with Bobcat Machine IQ telematics, providing near-real time visibility to machine location, health and security.

With conveniently located maintenance points, impressive onboard diagnostic systems, and easy component access, every owner can easily maintain a Bobcat wheel loader and ensure years of high performance.

With real-time and historical machine notifications available on the touchscreen display, you can quickly monitor maintenance needs and real-time machine health.

Made of durable steel, large folding access covers are easy to open, providing quick access to engine and hydraulic components at ground level.

The outboard, hub-mounted design of the low-speed brakes on Bobcat wheel loaders simplifies access to improve serviceability and reduce maintenance downtime.

Conveniently located drain ports help you drain engine oil and coolant during routine maintenance.

The DEF tank fill is easy to access – so top-offs are quick and easy. DEF tank features a blinking light to indicate it’s 90% full.

Quickly check fluid levels with a visual gauge that’s easy to see and read.

• Centralized lubrication points make daily greasing more likely to get done.
• Remote grease points make it easier to lubricate hard-to-reach pins on the lift arm and articulation system.

All machines come with a set of wheel chocks to block the wheels and stop the machine from moving during maintenance.
