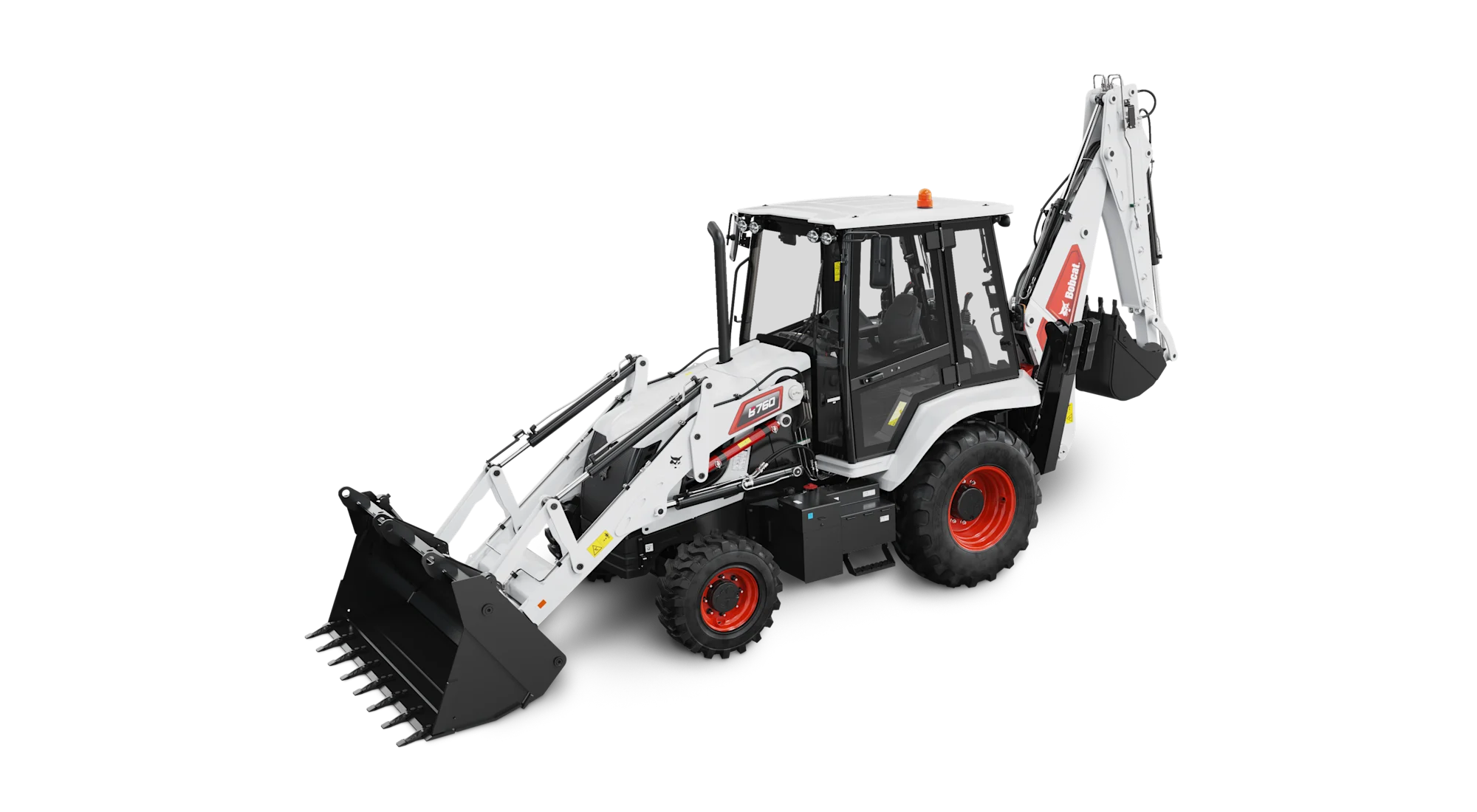

Bobcat B760 Backhoe Loader

With the exceptional arm and bucket breakout forces of the Bobcat B760, you’ll confidently dig in and conquer all types of difficult jobs.

Maximum Breakout Force:

• Loader bucket: 64,000 N (14,388 lbf.)
• Loader arm: 66,000 N (14,837 lbf.)
• Backhoe bucket: 64,000 N (14,388 lbf.)
• Backhoe arm: 43000 N (9,667 lbf.)

You can drive down the road at an impressive speed of 22.6 mph with the Bobcat B760, enabling you to quickly move across large jobsites or to entirely different jobsites without having to always use a trailer.

The power shift transmission gives you simple, on-the-fly operation and quick direction changes for easy loader work or to position the machine for digging with the backhoe. Operators get smooth transitions between four forward and two reverse gears and between two-wheel drive and four-wheel drive.

The Bobcat B760 offers owners and operators the greatest digging depth in its size class, with a maximum digging depth of 18.4 feet.

Find your backhoe working position and get the job done. Nearly 180 degrees of swing, 22 feet of reach (from swing center), 2,204 pounds of lift capacity at full reach and a maximum digging depth of 18.4 feet provide the performance and working range you need for less repositioning and fast cycle times.

With 11.3 feet of height to hinge pin and 3.95 feet of reach at full height, operators have ample performance at their fingertips when loading trucks or placing material in hard-to-reach areas. With the standard general purpose bucket, the B760 has a loader lift capacity of 7,985 pounds.

The Bobcat B760 comes standard with a 1.3-cubic-yard general purpose bucket for even greater loader versatility. The bucket can move mountains of material and be used for grading, back blading and grabbing bulky material.

The 3.4-liter turbo-charged Bobcat engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter (DPF). With fewer components, it’s easy to maintain and there’s no downtime for DPF regeneration.

When you need extra reach on command, the standard extendable arm increases the backhoe’s maximum digging depth from 15.4 feet to 18.4 feet, providing 6 to 8 more inches of dig depth compared to other machines of the same size.

Stabilizers provide a wide and solid footing to enhance your digging performance. The stabilizers feature rubber pads for reduced wear on concrete or other finished surfaces.

Versatility is the hallmark of this machine, and it’s made even more versatile with auxiliary hydraulics to power attachments from the front or rear.

When activated, operators can quickly return the bucket to the digging position to maximize efficiency and enhance productivity.

With the standard ride control engaged, you’ll have the best possible comfort while driving on roads or traversing rough terrain on the jobsite. The ride control absorbs shock in the loader arms, optimizing your travel speed, reducing bucket spillage and extending component life.

The one-piece backhoe swing lock keeps the backhoe secure when driving down the road, across the jobsite or while it’s not in use.

With heavy-duty construction with smart reinforcement and guarding, you can see that this backhoe loader is built to last.

Durable fenders minimize the throw of mud, dirt and other debris from the tires.

The B760 operator station is designed to keep you comfortable for hours of confident work. Sightlines to the work group for both the loader and backhoe provide optimal visibility for maximum productivity. All the controls, gauges and buttons are thoughtfully laid out for maximum ease of use and minimal fatigue. The dashboard makes it easy to monitor performance. Additional comfort and convenience features include a cup holder, a storage compartment, USB power ports and more.

Keep out of the elements and keep the job moving along – even when the weather won’t cooperate. The ROPS / FOPS certified, radio-ready cab with heat and air conditioning is engineered to give you an ideal environment for harsh jobsites. Wide glass panels and minimal obstructions inside and outside the cab keep you productive. Numerous vents are integrated into the cab to provide airflow where you need it the most.

The easy-to-read display panel provides full-featured machine interaction and monitoring capabilities from the operator’s seat. With detailed diagnostics and operation information accessed through the display, you can monitor your machine, troubleshoot and check warnings. Run your equipment more efficiently and solve mechanical issues in the field with the help of the 5-inch display panel. The display also supports multiple languages.

The fully adjustable suspension seat in Bobcat backhoe loaders provides customizable comfort for long days. The adjustable mechanical suspension helps smooth out bumpy jobsite conditions and keeps you working with less fatigue over long hours. The seat easily rotates from loader operation to backhoe – and back.

It’s easy to see the backhoe loader’s surroundings from the side and rear points of view. Whether traveling to the jobsite or putting the B760 to work, you’ll have convenient visibility for environmental awareness.

The loader joystick requires low effort to operate and is convenient to reach inside the operator station. Fingertip control of the auxiliary hydraulics makes it easy and comfortable to operate attachments.

Pilot controls offer smooth, fast and precise work group movement while operating the backhoe. Fingertip auxiliary controls make operating breakers and other attachments seamless and simple.

The backhoe levers can be easily moved from their operating position for more room to rotate the seat and return to front-end operations.

The B760 features eight work lights, with four in the front and four in the rear for efficient operation of the loader and backhoe at all hours of the day.

Rear tail lights and flasher come standard for efficient road travel. Add optional headlights for additional illumination to the front of the machine.

The backhoe pattern selector makes it easy to change between ISO and SAE control patterns – which is essential for accommodating multiple operators or when offering the Bobcat backhoe loader as a rental machine.

Eliminate downtime due to lost keys and reduce the chance of theft or unauthorized use. A convenient keyless start allows for easy productivity whenever you need the backhoe loader.

The one-piece hood lifts easily out of the way, giving you wide-open access to the engine compartment. With easy-to-reach service points and simple engine and component layouts, you can easily perform daily maintenance checks and routine service in less time.

Using the approved lift arm support, you can move the lift arms out of the way for service and maintenance.

The high-performance engine features a diesel oxidation catalyst (DOC) aftertreatment system, which is virtually maintenance-free. It also meets EPA Tier 4 emissions standards without the use of diesel particulate filters. There’s no downtime from regeneration.

Carry and load in front. Dig in back. Bobcat backhoe loaders can pull double duty on a wide range of tough jobs. The backhoe’s versatility is further enhanced with attachment applications, such as ground compaction tasks.

Bobcat is famous for its attachment versatility, and our backhoe loader is no exception. With a diverse selection of attachments, you’ll get more utilization and work opportunities with your machine.
